SPP750
750 GPM
25 HP at 60 ft rated head, with 6-inch suction and discharge.
Maximum head: not listed
Henderson, Kentucky Industrial Water Pumps
Industrial water pumps for Henderson and the Ohio Valley.
Bluegrass Air Power helps buyers compare three self-priming pump models rated from 750 to 1,250 GPM by flow, head, motor power, connections, solids capacity, and listed applications.
Representative equipment
- Rated flow
- 750–1,250 GPM
- Motor power
- 25–50 HP
- Connections
- 6 inches
PUMP SELECTION
How do you size a self-priming industrial water pump?
Match the required flow in GPM to the system's total dynamic head (TDH), then check that duty point on the current manufacturer performance curve. TDH includes the net elevation or pressure requirement plus flow-dependent losses through pipe, valves, and fittings. Do not assume maximum flow is available at maximum head.
Self-priming does not mean dry-starting, and priming lift is not NPSH. Confirm the model's initial casing-fill procedure and published priming-lift data, and keep the suction piping airtight and free of high points that trap air. Calculate NPSH available (NPSHA) for the worst-case system condition—including the lowest liquid level, site atmospheric pressure, liquid temperature and vapor pressure, and suction-side losses at the intended flow—then compare it with the manufacturer's NPSH required (NPSHR) and required margin at the same duty point and speed. The available SPP data does not publish priming lift or NPSHR, so confirm both before selection.
- Required duty point
- Required GPM, total dynamic head, and the lowest and highest expected liquid levels.
- Suction and liquid
- Suction lift, pipe length and diameter, fittings, liquid type and temperature, plus the largest solids, concentration, and whether the material is stringy, abrasive, or corrosive. A maximum-solids rating alone does not establish clogging, wear, or wetted-material compatibility for the actual liquid.
- Power and operation
- Available voltage and phase, expected operating pattern, and indoor or outdoor site conditions.
SPP1000
1,000 GPM
35 HP at 60 ft rated head, with 6-inch suction and discharge.
Maximum head: not listed
SPP1250
1,250 GPM
50 HP at 60 ft rated head, with 6-inch suction and discharge.
Maximum head: 138 ft
Bluegrass Air Power is based in Henderson and works with equipment buyers across Western Kentucky, Southern Indiana, Southern Illinois, and Northwest Tennessee. Final pump selection and configuration should be confirmed for the actual duty point and site conditions.
AVAILABLE MODELS
Compare three available SPP models.
Add models to your purchase order for application review and current pricing. Contact Bluegrass Air Power to confirm the configuration available for your application.
Purchase order: 0
Omorfo self-priming water pump
SPP750
ZPT-SPP750-P6/25
- Rated flow
- 750 GPM
- Motor power
- 25 HP
Recommended applications
- Construction
- Flood control
- Dewatering
Omorfo self-priming water pump
SPP1000
ZPT-SPP1000-P6/35
- Rated flow
- 1,000 GPM
- Motor power
- 35 HP
Recommended applications
- Industrial water transfer
- Mining
- Agriculture
Omorfo self-priming water pump
SPP1250
ZPT-SPP1250-P6/50
- Rated flow
- 1,250 GPM
- Motor power
- 50 HP
Recommended applications
- Heavy-duty dewatering
- Municipal systems
- Industrial applications
Pricing is application-specific. Contact us for current pricing and available configurations.
TECHNICAL SPECIFICATIONS
Compare the published model data.
Treat the listed flow and head as catalog comparison fields—not proof that both occur at the same operating point. The available source data does not include SPP performance curves, best-efficiency or operating regions, NPSHR, efficiency, or input power across flow. Confirm the current manufacturer curve for the selected speed, impeller, and pumped liquid before choosing a model or ordered configuration.
Scroll horizontally to compare all three models.
| Specification | SPP750 | SPP1000 | SPP1250 |
|---|---|---|---|
| Manufacturer model | ZPT-SPP750-P6/25 | ZPT-SPP1000-P6/35 | ZPT-SPP1250-P6/50 |
| Suction | 6 in | 6 in | 6 in |
| Discharge | 6 in | 6 in | 6 in |
| Maximum solids | 3 in | 3 in | 3 in |
| Rated flow | 750 GPM | 1,000 GPM | 1,250 GPM |
| Rated head | 60 ft | 60 ft | 60 ft |
| Maximum head | Not listed | Not listed | 138 ft |
| Speed | 1,142 RPM | 1,770 RPM | 1,770 RPM |
| Motor power | 25 HP | 35 HP | 50 HP |
| Voltage | 460 V / 60 Hz / 3 phase | 460 V / 60 Hz / 3 phase | 460 V / 60 Hz / 3 phase |
| Impeller diameter | 8.38 in | 9.75 in | 10.25 in |
| Casing material | Cast iron | Cast iron | Cast iron |
| Impeller material | Ductile iron | Ductile iron | Ductile iron |
| Mechanical seal | Silicon carbide (SiC) | Silicon carbide (SiC) | Silicon carbide (SiC) |
STANDARD FEATURES
Construction and solids-handling features.

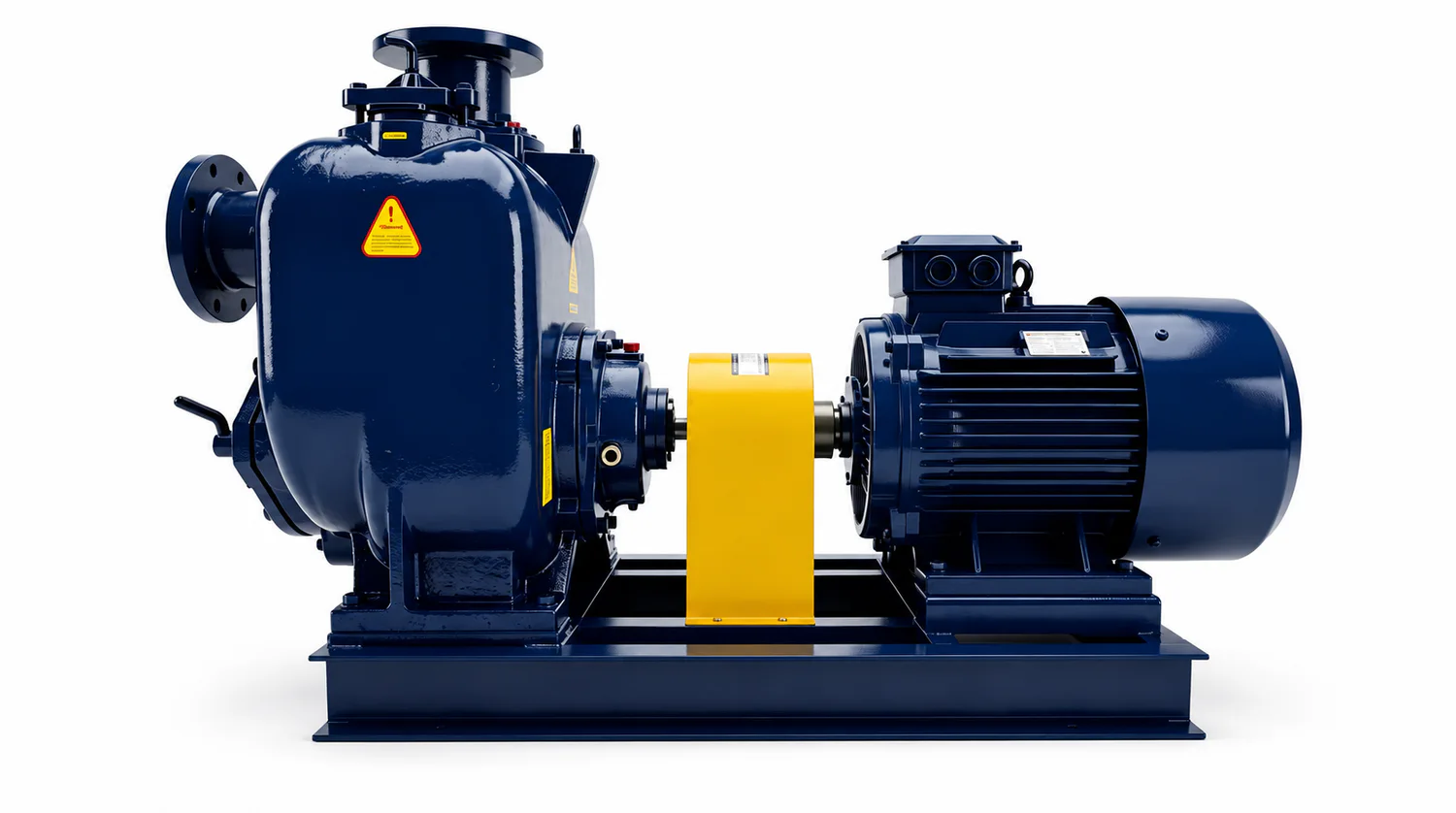

The SPP lineup uses a self-priming trash-pump design, cast-iron casing, ductile-iron impeller, and silicon carbide mechanical seal, with published solids handling up to 3 inches.
- Self-priming trash pump design
- Handles solids up to 3 inches
- Heavy-duty cast iron casing
- Ductile iron impeller
- Silicon carbide (SiC) mechanical seal
- Continuous-duty industrial construction
LISTED APPLICATIONS
Applications listed for the SPP pump range.
Water treatment plants
Manufacturing facilities
Commercial buildings
Agriculture and irrigation
Mining operations
Construction sites
Municipal water systems
Food and beverage processing
HVAC systems
Fire protection systems
Warranty
3-Year Limited Warranty
The supplied product literature lists a three-year limited warranty covering defects in materials and workmanship under normal commercial use. Confirm current terms with your quote.
BUILD THE RIGHT PUMP QUOTE
Tell us the flow, head, solids, power, and application.
Bluegrass Air Power can help confirm the appropriate model and configuration based on the three published SPP models shown here.
