01
Validate the 106 CFM demand case
Use a representative demand profile to compare normal and peak usage with 106 CFM at 125 PSI, including the effect of real system pressure loss.
OMORFO ROTARY SCREW COMPRESSOR

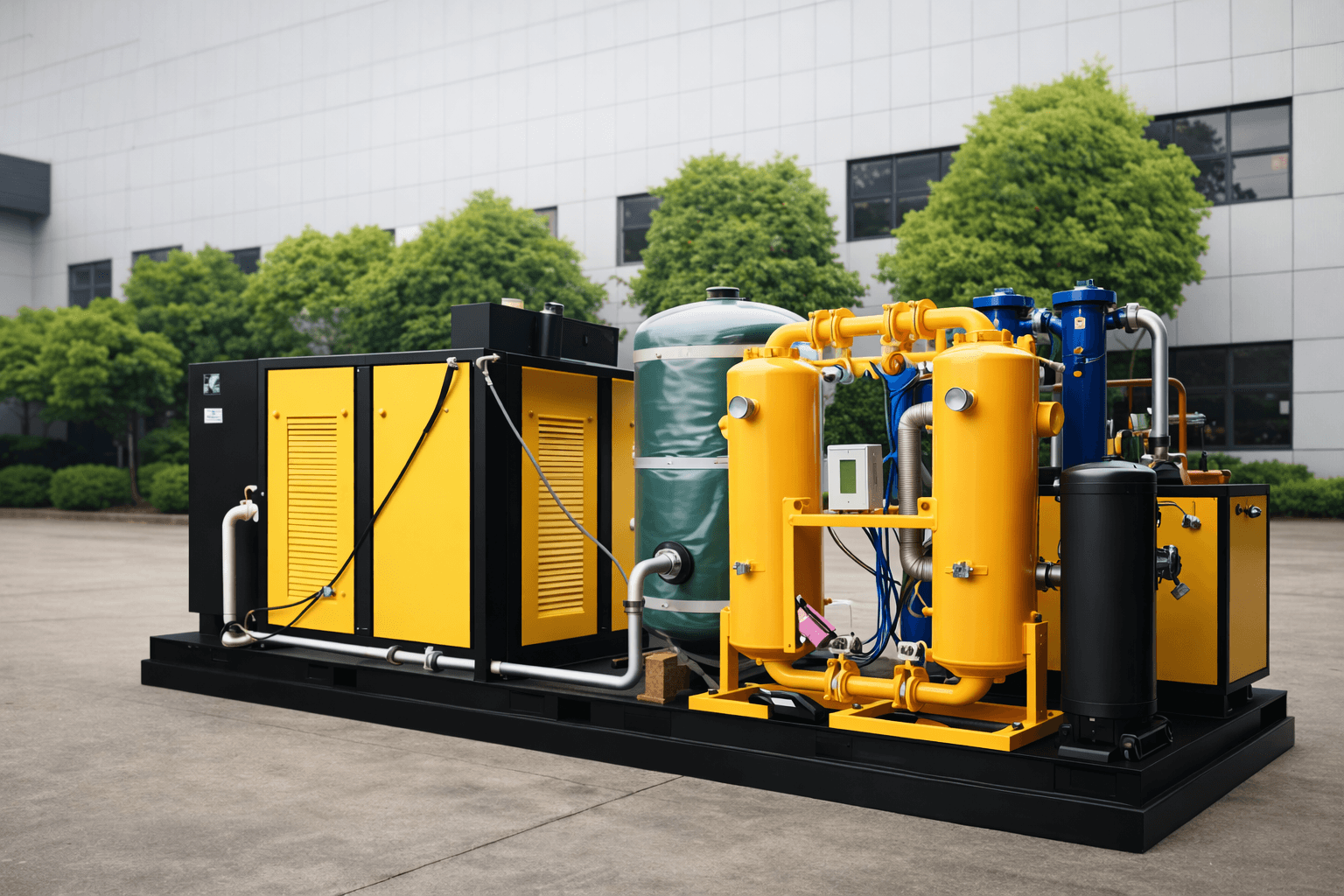

Omorfo OM25S 25 HP rotary screw air compressor
The Omorfo OM25S is a base-mounted rotary screw air compressor rated at 25 HP and 106 CFM at 125 PSI. Its listed electrical supply is 230/460 V, 3-phase, 60 Hz, with a published sound rating of 66 dB.
OM25S model detail
Base-mounted
- Motor
- 25 HP
- Rated airflow
- 106 CFM
- Rated pressure
- 125 PSI
- Sound rating
- 66 dB
MODEL OVERVIEW
Evaluate the OM25S against measured demand.
A 106 CFM rating makes the OM25S a different system-sizing conversation than the tank-mounted models on this site. Confirm which production loads overlap, how long the demand is sustained, and how much pressure is lost between the compressor and the process before treating the published output as a match.
Omorfo lists the OM25S as base-mounted. The installation plan therefore needs an explicit discussion of the complete system arrangement, including receiver requirements, placement, piping, air treatment, drains, electrical service, ventilation, and maintenance access. Those items are not established by the compressor rating alone.
OM25S published specifications
- Model
- OM25S
- Motor power
- 25 HP
- Rated pressure
- 125 PSI
- Rated airflow
- 106 CFM
- Electrical supply
- 230/460 V, 3-phase, 60 Hz
- Published sound rating
- 66 dB
- Mounting
- Base-mounted
Specification notice: Published values are based on current manufacturer information. Specifications and configurations can change and must be confirmed with Bluegrass Air Power and Omorfo for the unit being quoted or ordered.
Review Omorfo's current rotary compressor information (opens in a new tab)APPLICATION FIT
Where the OM25S enters the selection process
Published output establishes a comparison point. The application, demand pattern, site, and complete air-system design determine whether this specific model belongs in a final quote.
02
Plan the base-mounted system
Ask what receiver arrangement and balance-of-system components are required alongside the listed base-mounted compressor for the intended application.
03
Coordinate the installation
Confirm 230/460 V, 3-phase, 60 Hz power, usable service clearances, ventilation needs, piping routes, and how the 66 dB rating should be interpreted at the site.
BEFORE A QUOTE
Questions to answer before choosing the OM25S
Bring these answers to the equipment conversation. Clear operating requirements are more useful than choosing from horsepower alone.
Discuss the OM25S- Does the recorded demand profile remain within 106 CFM at 125 PSI during both typical production and simultaneous peak events?
- What pressure must reach the furthest or most sensitive process after losses through the complete air system?
- What receiver arrangement, if any, should be specified with this base-mounted compressor?
- Are dryer capacity, filtration level, drain strategy, and pipe sizing being selected around the same airflow and pressure case?
- Which listed voltage configuration is required, and can the facility support the confirmed 3-phase, 60 Hz installation?
- Does the equipment location provide the access and ventilation identified during final manufacturer and installer review?
- How does the published 66 dB sound rating affect placement once room conditions and adjacent work areas are considered?
NEXT STEPS
Plan the compressor as part of the full air system.
Selection, site requirements, air treatment, and ordered configuration should be evaluated together. These resources help turn the model rating into a better-scoped project discussion.
Size the load
Compressor sizing guide
Organize CFM, PSI, runtime, power, and site details before comparing equipment.
Read the guide →Prepare the request
Application quote
Share demand, pressure, electrical, site, and timeline details for a focused equipment and pricing conversation.
Request a quote →Compare the category
Rotary screw guide
Review duty cycle, controls, site conditions, air quality, and lifecycle questions.
Compare decisions →Local supplier
Henderson, Kentucky
Learn how Bluegrass Air Power approaches industrial compressor selection across the Ohio Valley.
View local options →RELATED MODELS
Compare other listed Omorfo compressors.
HENDERSON, KENTUCKY • OHIO VALLEY
Get a focused OM25S quote.
Share your required CFM and PSI, operating schedule, electrical service, air-quality needs, and installation constraints with Bluegrass Air Power in Henderson.
